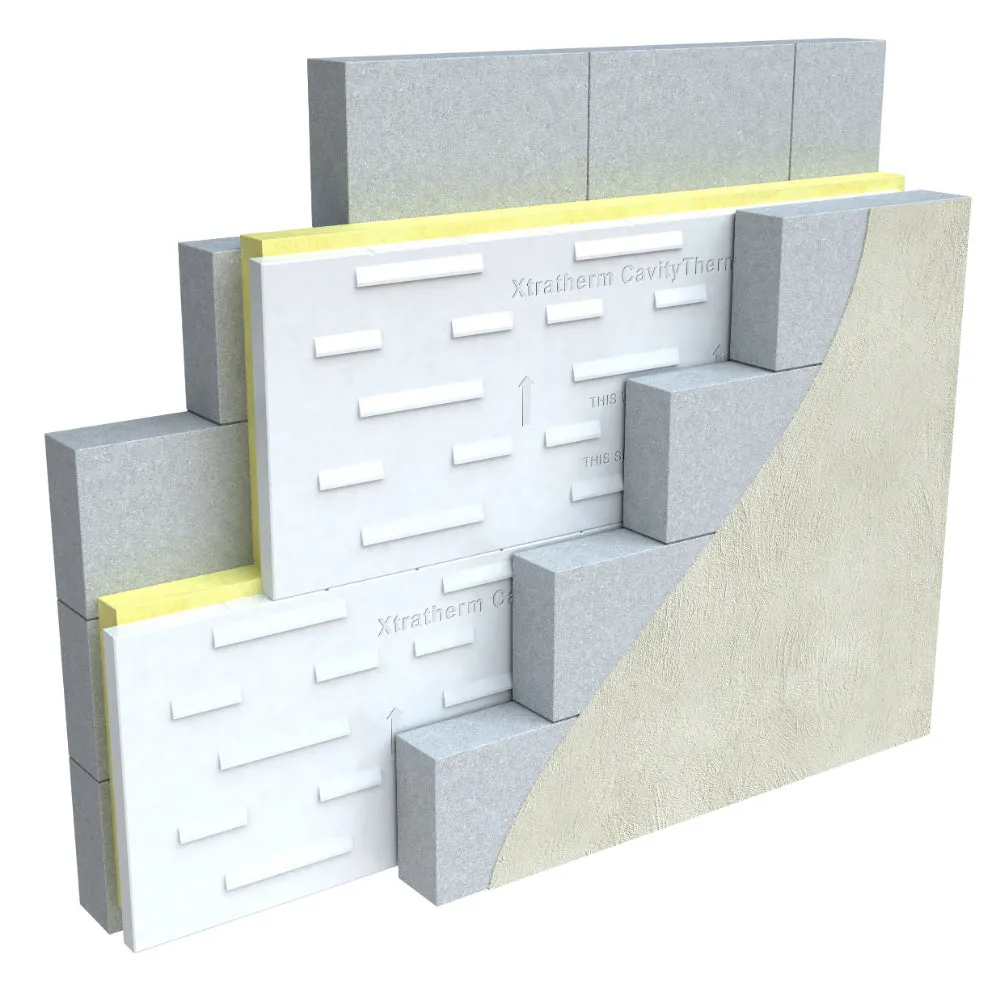

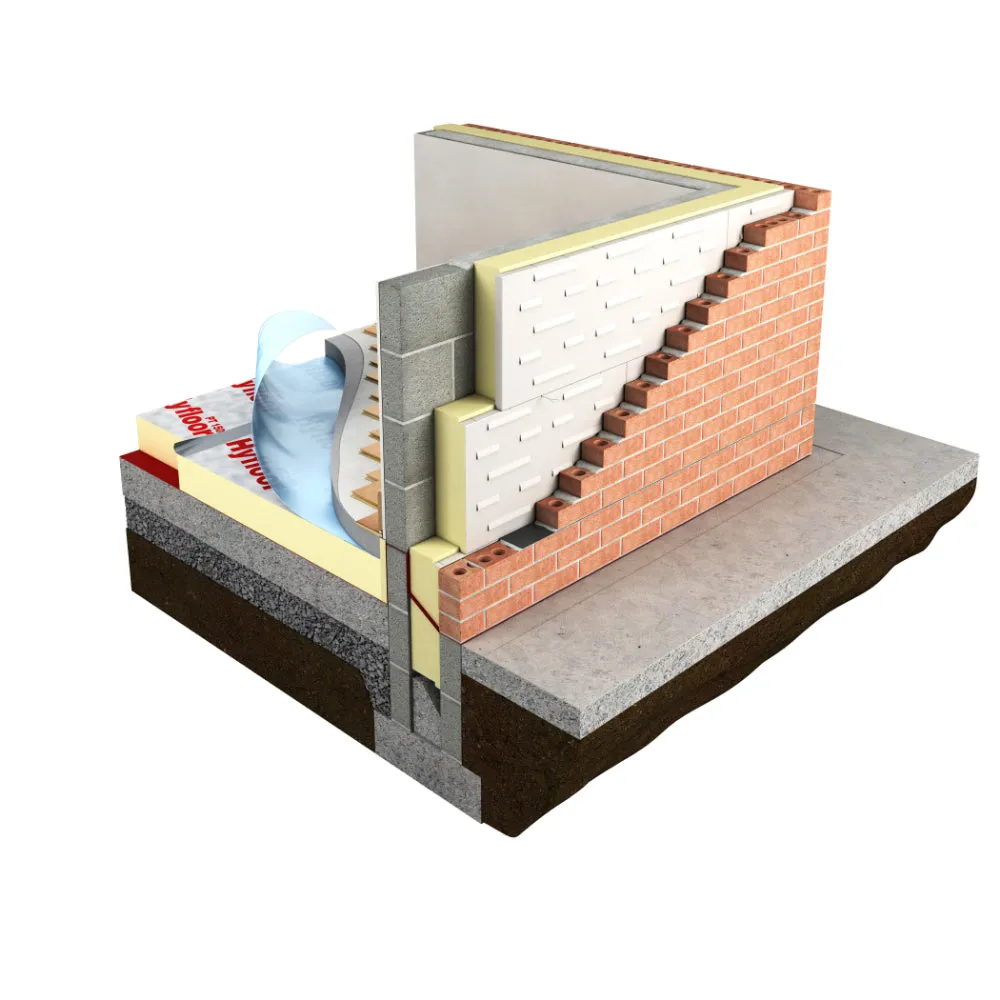

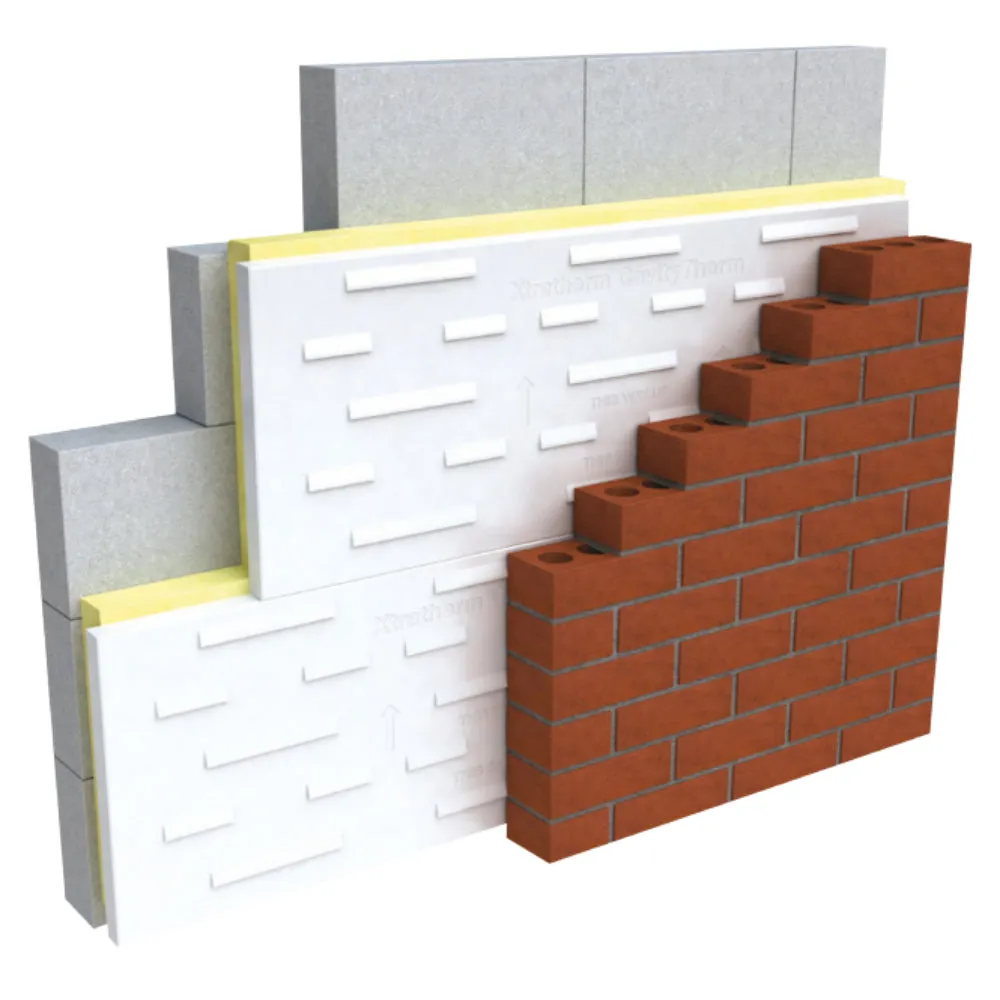

Thin-R Plus CavityTherm is an innovative built-in insulation for traditional walls that achieves passive level U-Values as low as 0.12 W/m2K with excellent thermal bridging detailing in cavities less than 150mm wide. It has a unique engineered profile facing that directs any moisture that might penetrate the external wall down the protective facing and back onto the external leaf, giving added protection from wind-driven rain.

- Available with a full range of innovative detailing accessories.
- PIR core.
- High Thermal Performance.
- Zero Ozone Depletion Potential (ODP) and GWP < 5.

Thickness: 75mm
Width: 450mm
Length: 1200mm
Board coverage: 0.54 m²
Board Profile: Rebated Edge
Density: 30kg/m³
Thermal Conductivity: 0.021 W/mK
R-Value: 3.33 m²K/W
Typical U-Values: Walls = 0.14 W/m²K
Fire Rating: Euroclass F
Compressive Strength: >100kPa @ 10% Compression

Application:
Suitable for New Build and Refurbishment Projects.
For use in Cavity Walls.

Certification:

• ISO9001 - Quality Management Systems
• ISO14001 - Environmental Management
• A  rating on BRE Green Guide
• BBA Certification No. 10/4786
