description

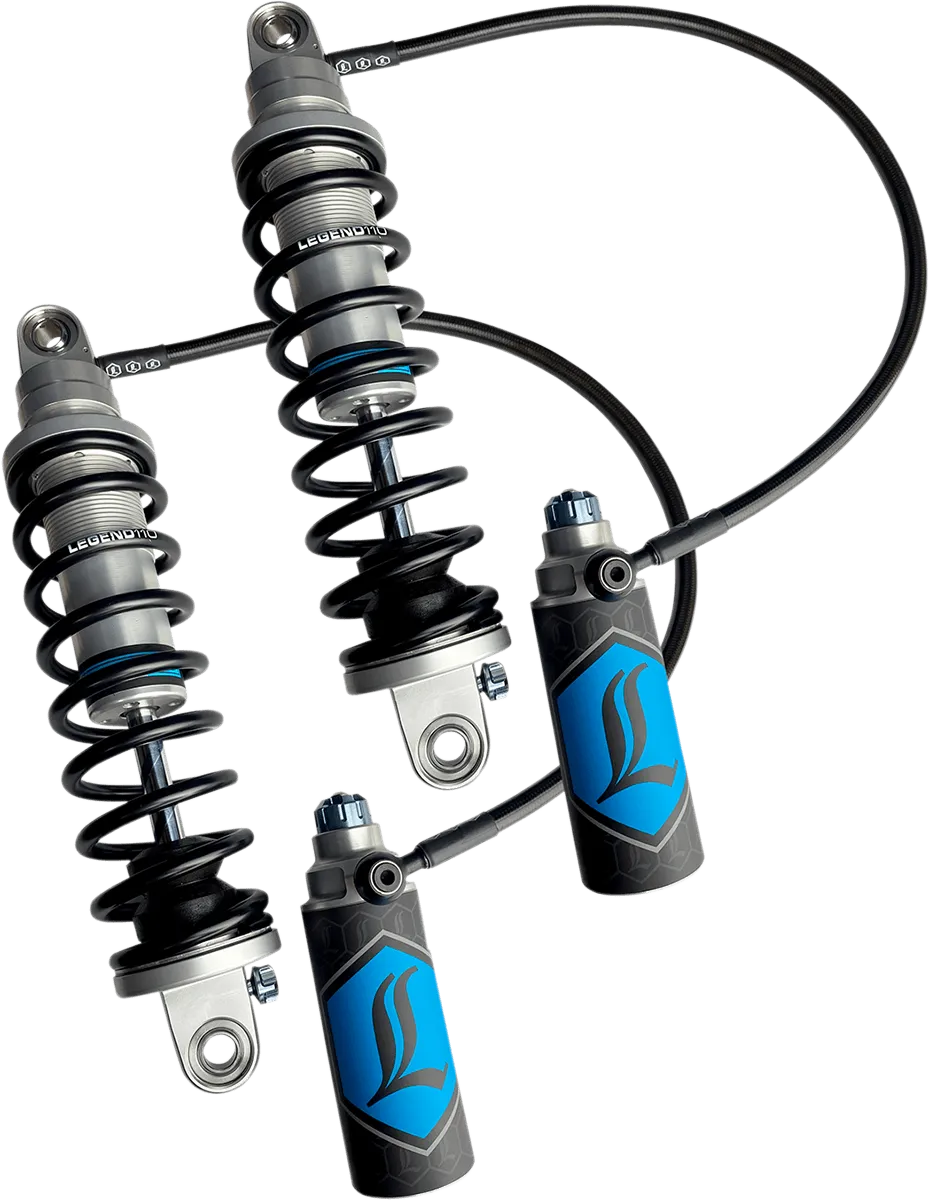

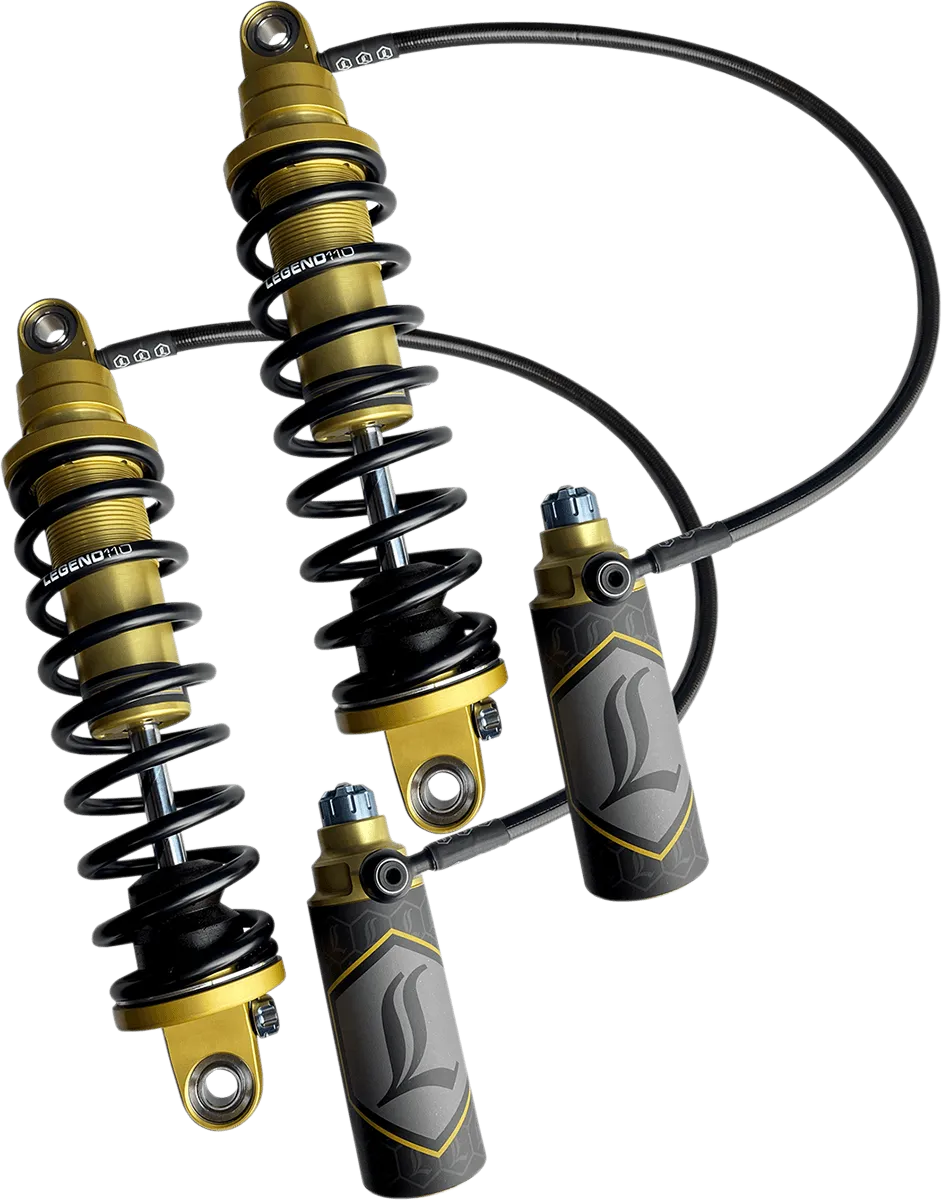

Available in Black Type III hard-coat anodize. Legends Touring specific spring rates produce superior ride quality and performance. REVO coils provide improved plush ride quality, control and resistance to bottoming-out. REVO extended coil length has larger sweet spot without increasing overall shock length. Requires minimal pre-load adjustment by hand when changing between riders weights or loads. Adjusts by hand, no tools needed. Available in 13in. and 14in. , standard or heavy-duty applications. Easy installation and alignment, provided by spherical bearings on both top and bottom. 35mm monotube construction. Deflective disc valve stacks. Balanced/ matched piston and base-valve design specific for these motorcycle applications. Low friction sealing system and PTFE based sliding bearings for improved performance and feel. Seven external knob adjustments allow fine-tuning of rebound. Seven external knob adjustments allow fine-tuning of compression. Provides optimum rebound and compression performance for any given rider weight, personal ride quality preference or personal riding style. Nitrogen gas bladder design allows ultra-fast response and stiction-free movement. Light to heavy riders can fine-tune ride preference. Aggressive to casual riding styles can tune to desired quality or personal preference. Made in the u. s. a. NOTE: Heavy-duty applications are recommended for 500 lb. rider and passenger total weight.

fitment

• FLHR Road King 2009-2013
• FLHRC Road King Classic 2009-2013
• FLHT Electra Glide Standard 2009
• FLHTC Electra Glide Classic 2009-2013
• FLHTCU Electra Glide Ultra Classic 2009-2013
• FLHTK Electra Glide Ultra Limited 2010-2013
• FLHX Street Glide 2009-2013
• FLTR Road Glide 2009
• FLTRU Road Glide Ultra 2011-2013
• FLTRX Road Glide Custom 2010-2013
